Automatic Reconstruction of Woven Cloth from a Single Close-up Image

1University of Manchester  2Shandong University 3Mohamed bin Zayed University of Artificial Intelligence
Computer Graphics Forum (PG 2025)

Abstract

Digital replication of woven fabrics presents significant challenges across a variety of sectors, from online retail to textile design. To address this, we introduce an inverse rendering pipeline designed to estimate pattern, geometry, and appearance parameters of woven fabrics given a single close-up image as input. Our work is capable of simultaneously optimizing both discrete and continuous parameters without manual interventions. It outputs a wide array of parameters, encompassing discrete elements like weave patterns, ply and fiber number, using Simulated Annealing. It also recovers continuous parameters such as reflection and transmission components, aligning them with the target appearance through differentiable rendering. For irregularities caused by deformation and flyaways, we use 2D Gaussians to approximate them as a post-processing step. Our work does not pursue perfect matching of all fine details, it targets an automatic and end-to-end reconstruction pipeline that is robust to slight camera rotations and room light conditions within an acceptable time (15 minutes on CPU), unlike previous works which are either expensive, require manual intervention, assume given pattern, geometry or appearance, or strictly control camera and light conditions.

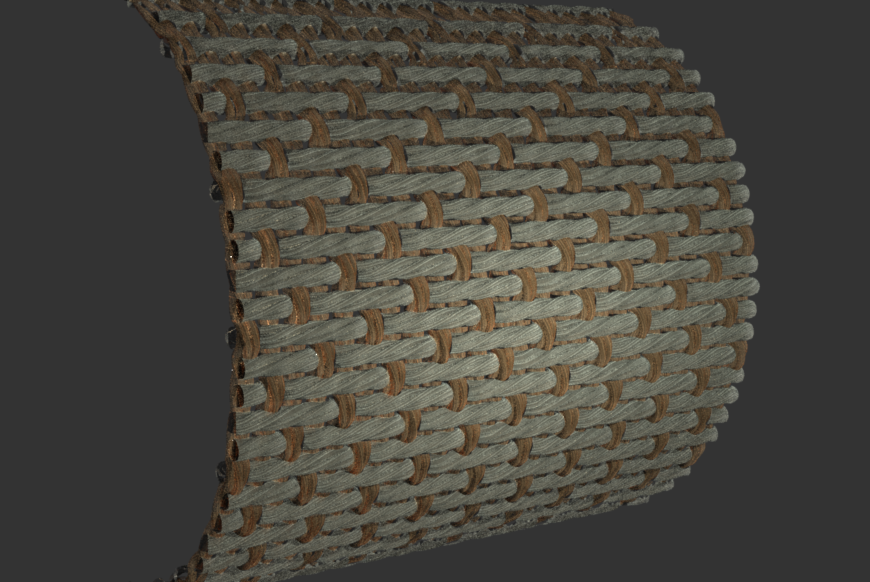

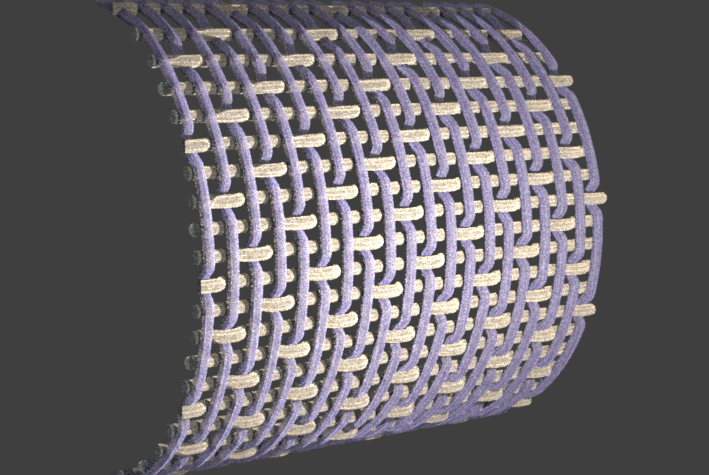

Yarn control points generator

Results

1. Transmission

We apply a yarn-based model that considers not only reflection but also transmission of fabrics.

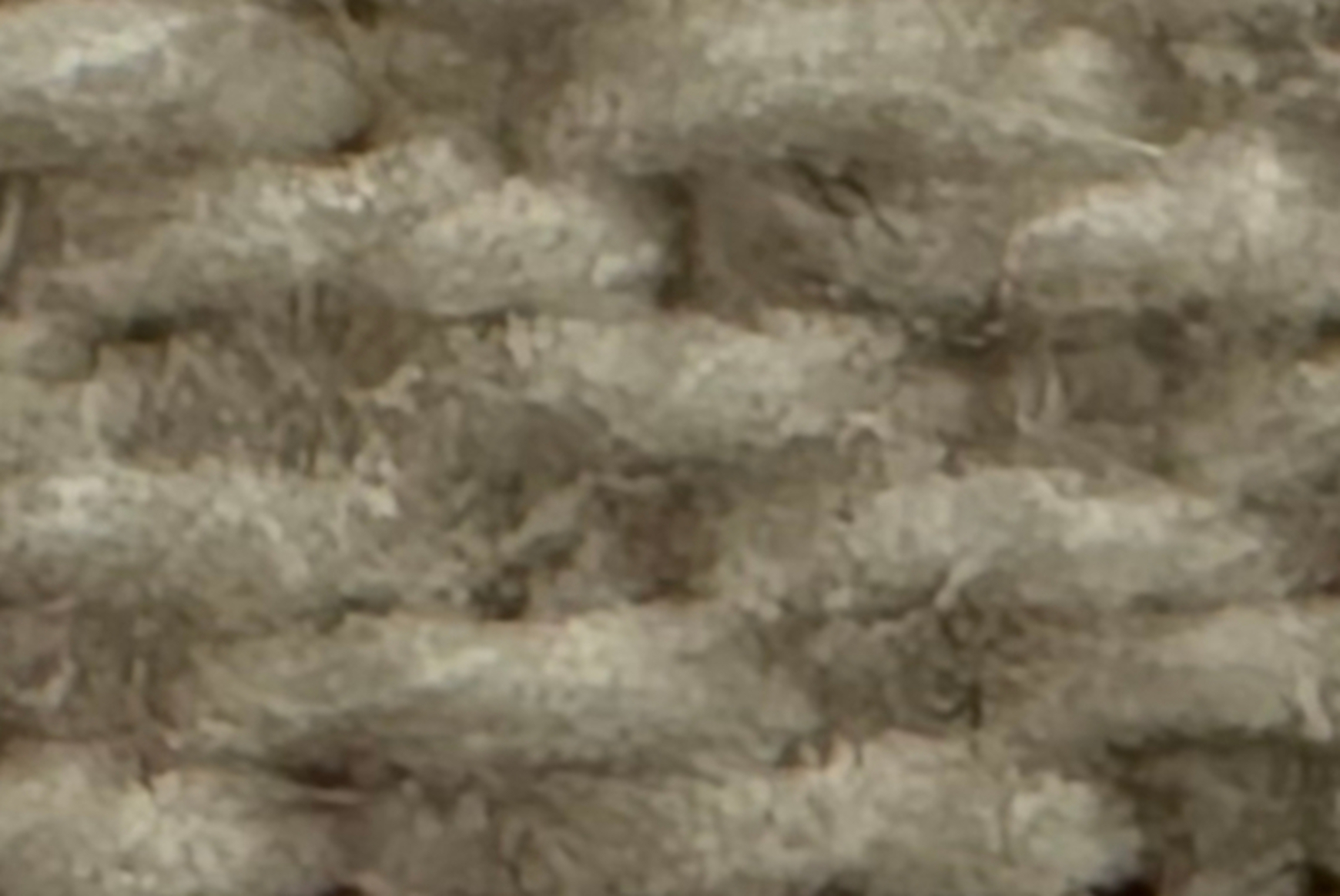

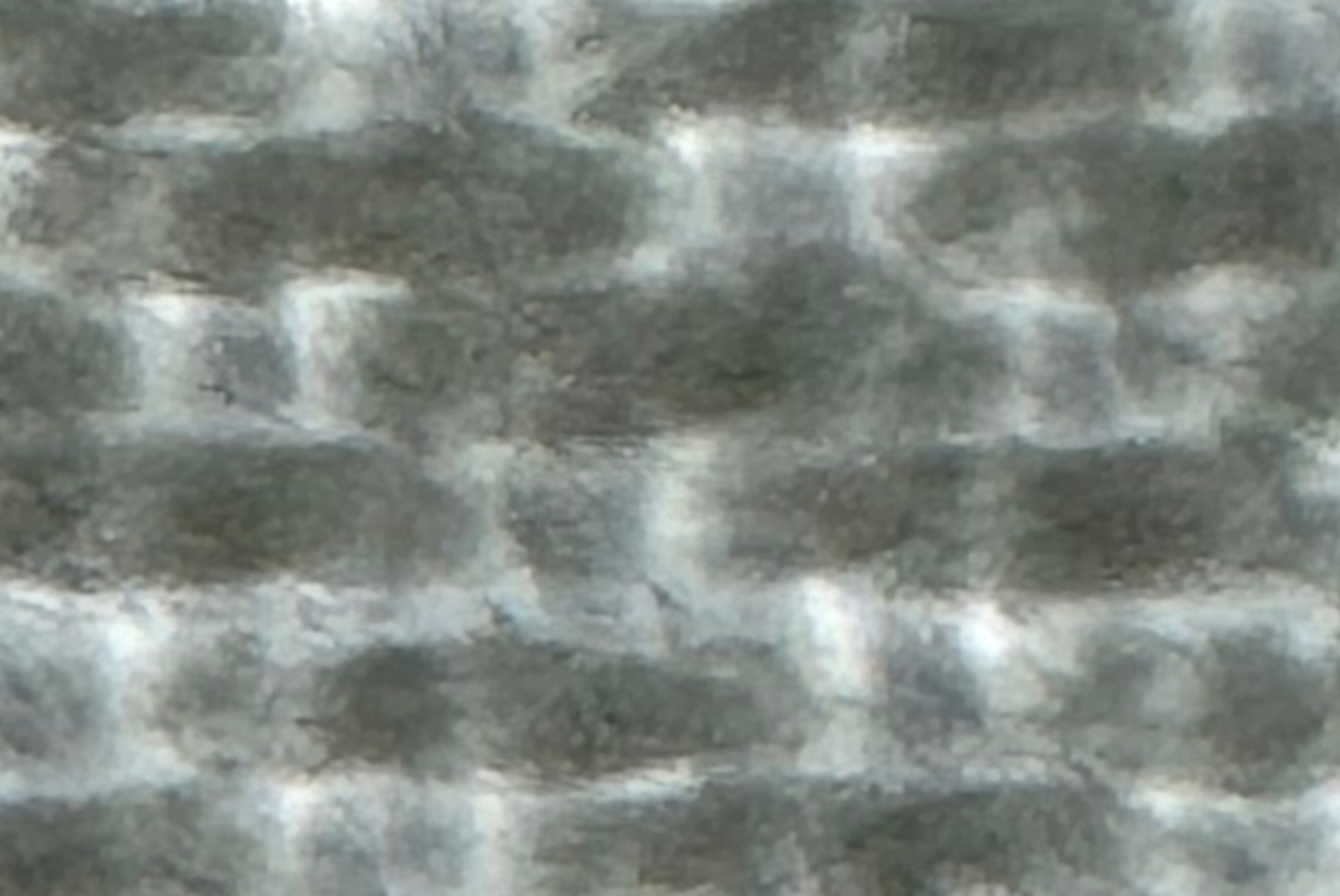

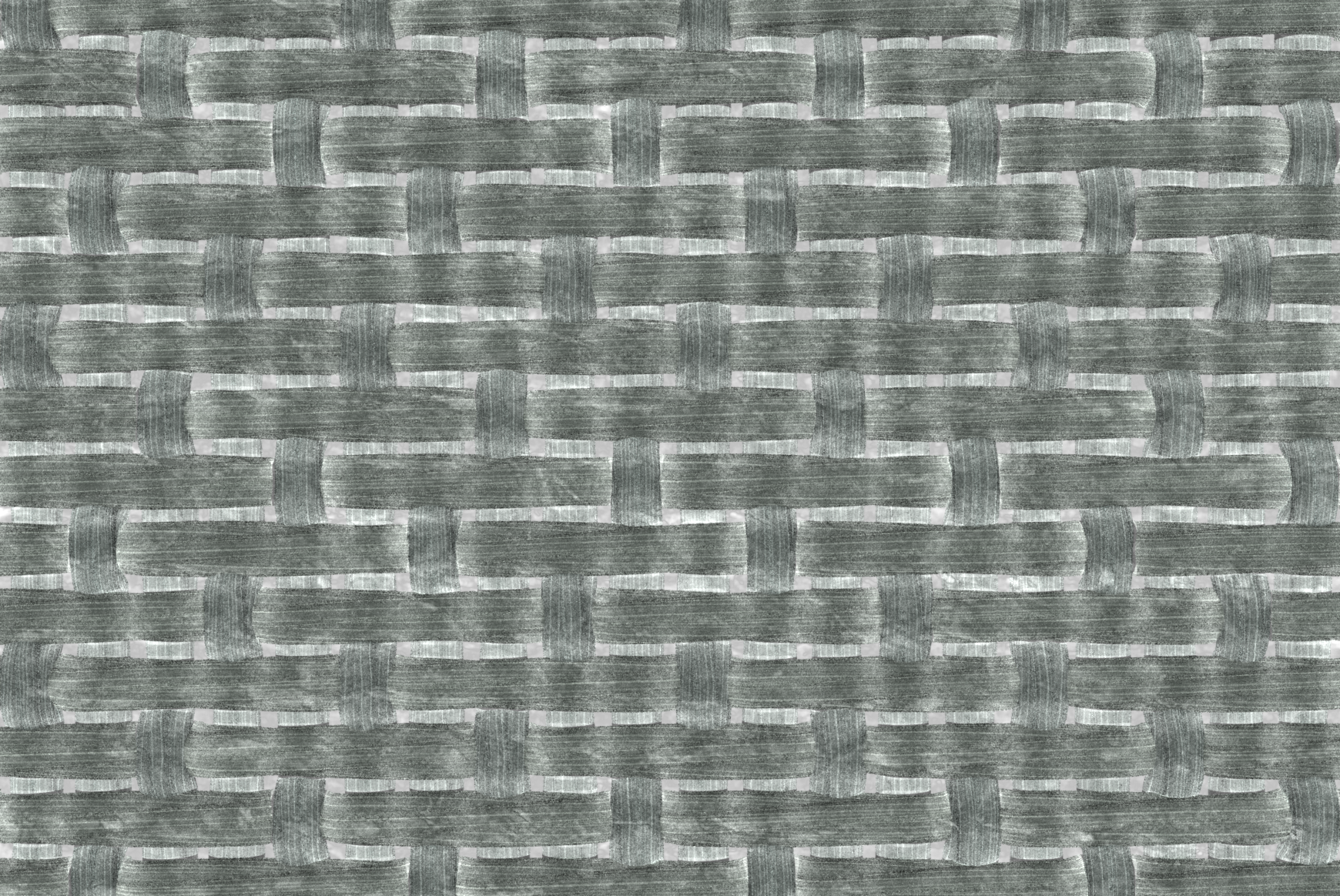

Reference Ours Ref zoom-in Ours zoom-in
(a) Front
(b) Back
(c) Both

2. Results

We tested our method on synthetic data, our captured data and public real data.

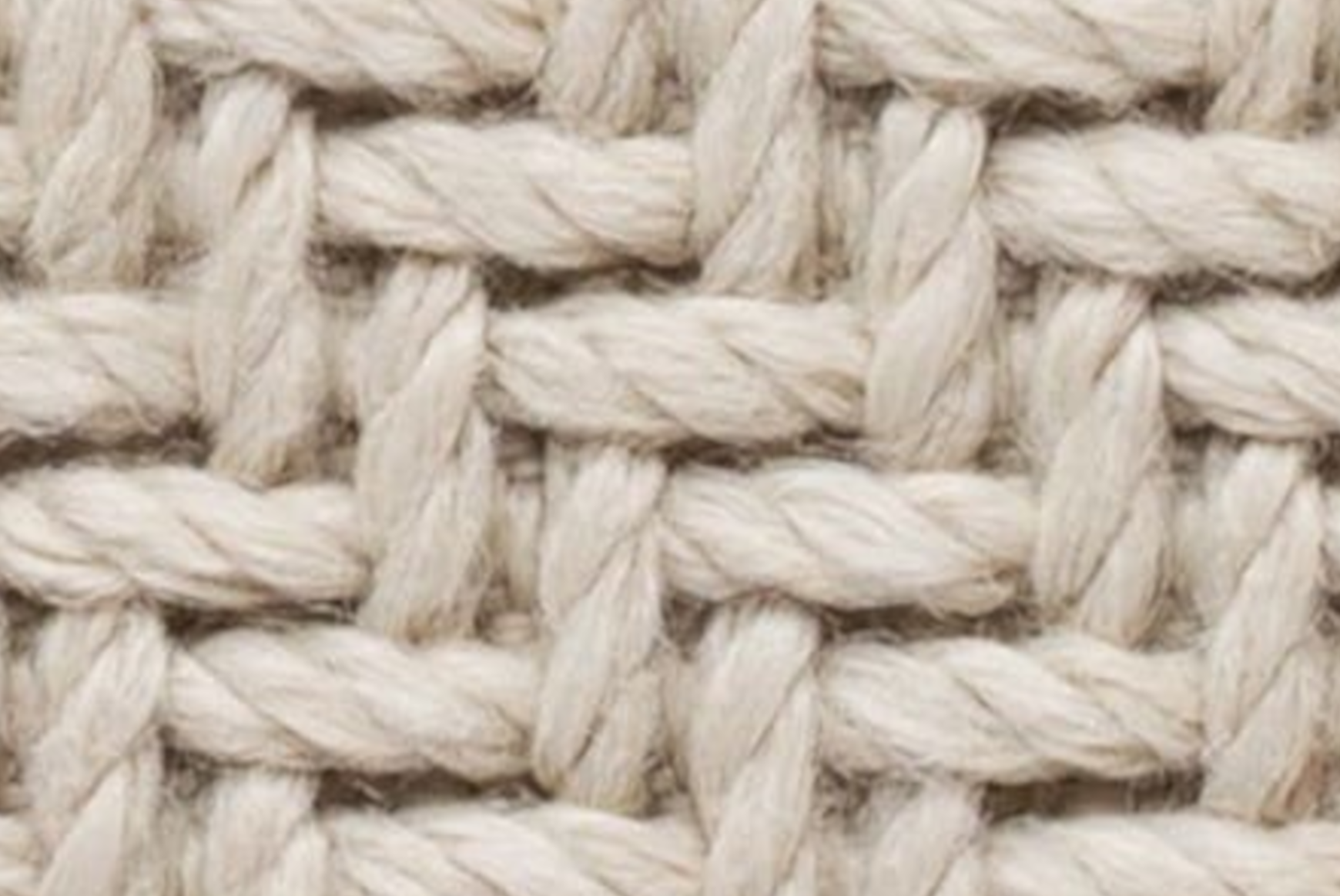

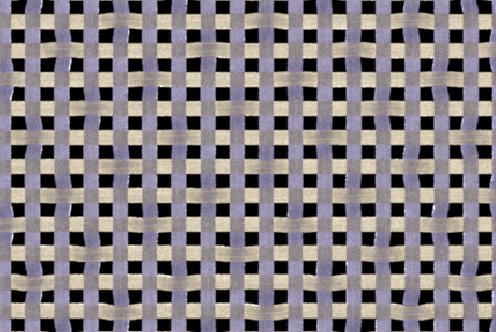

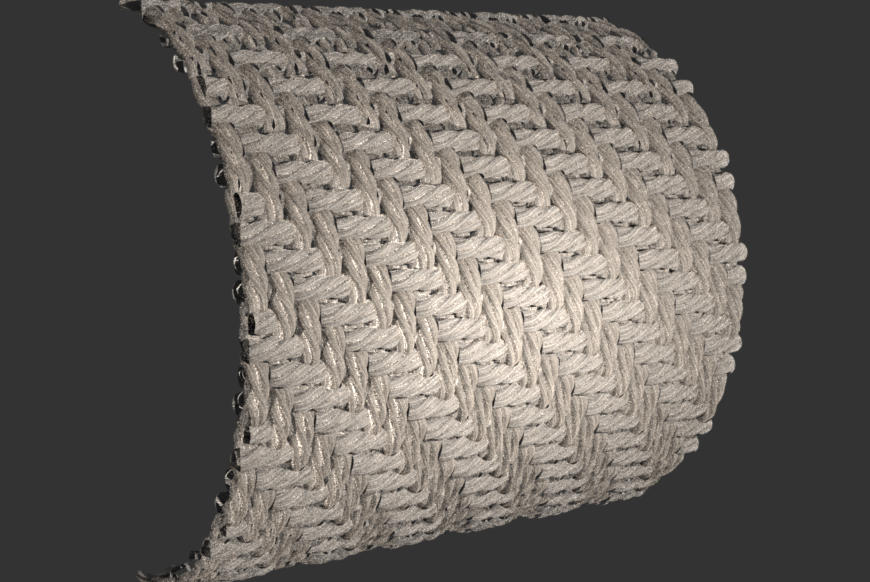

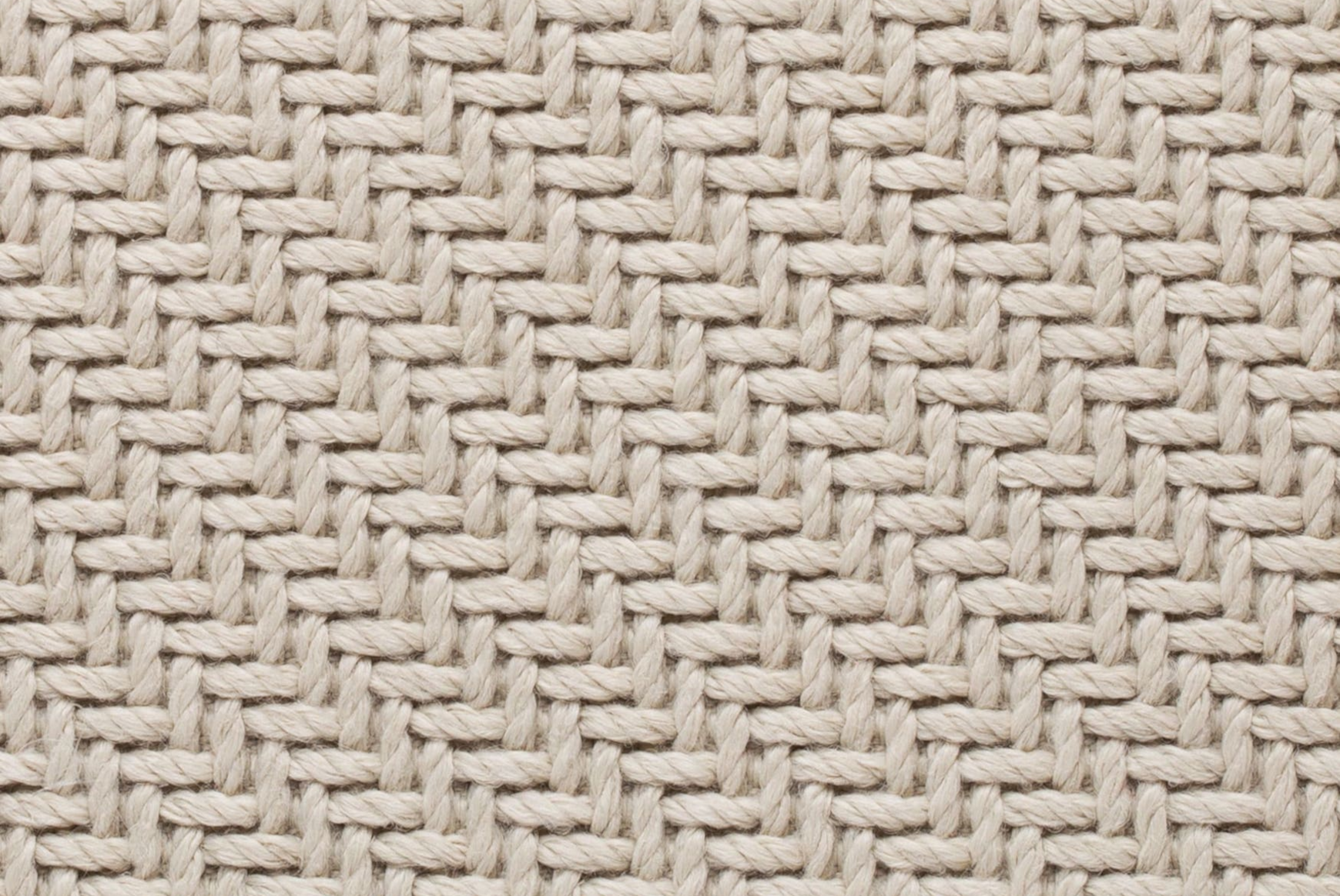

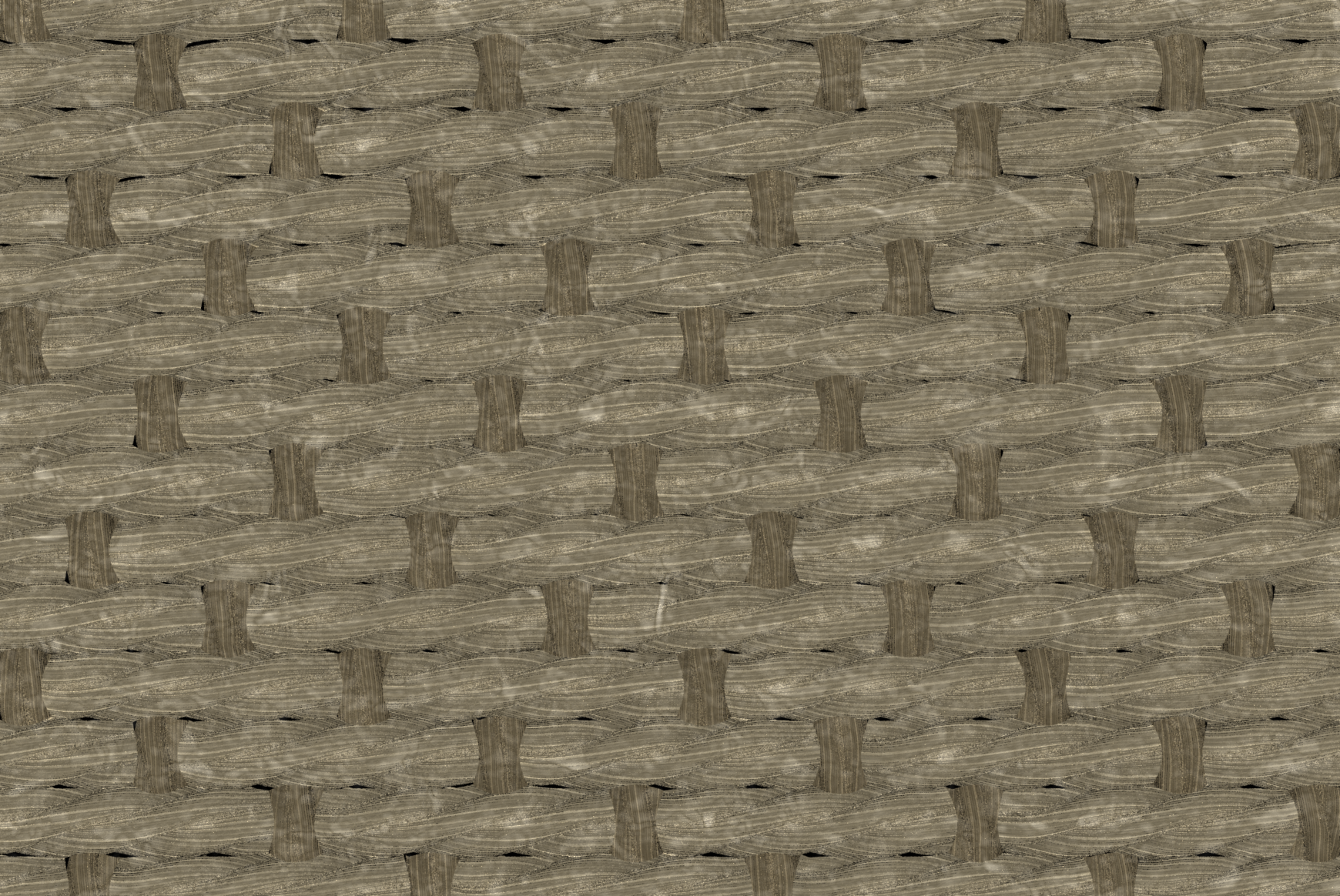

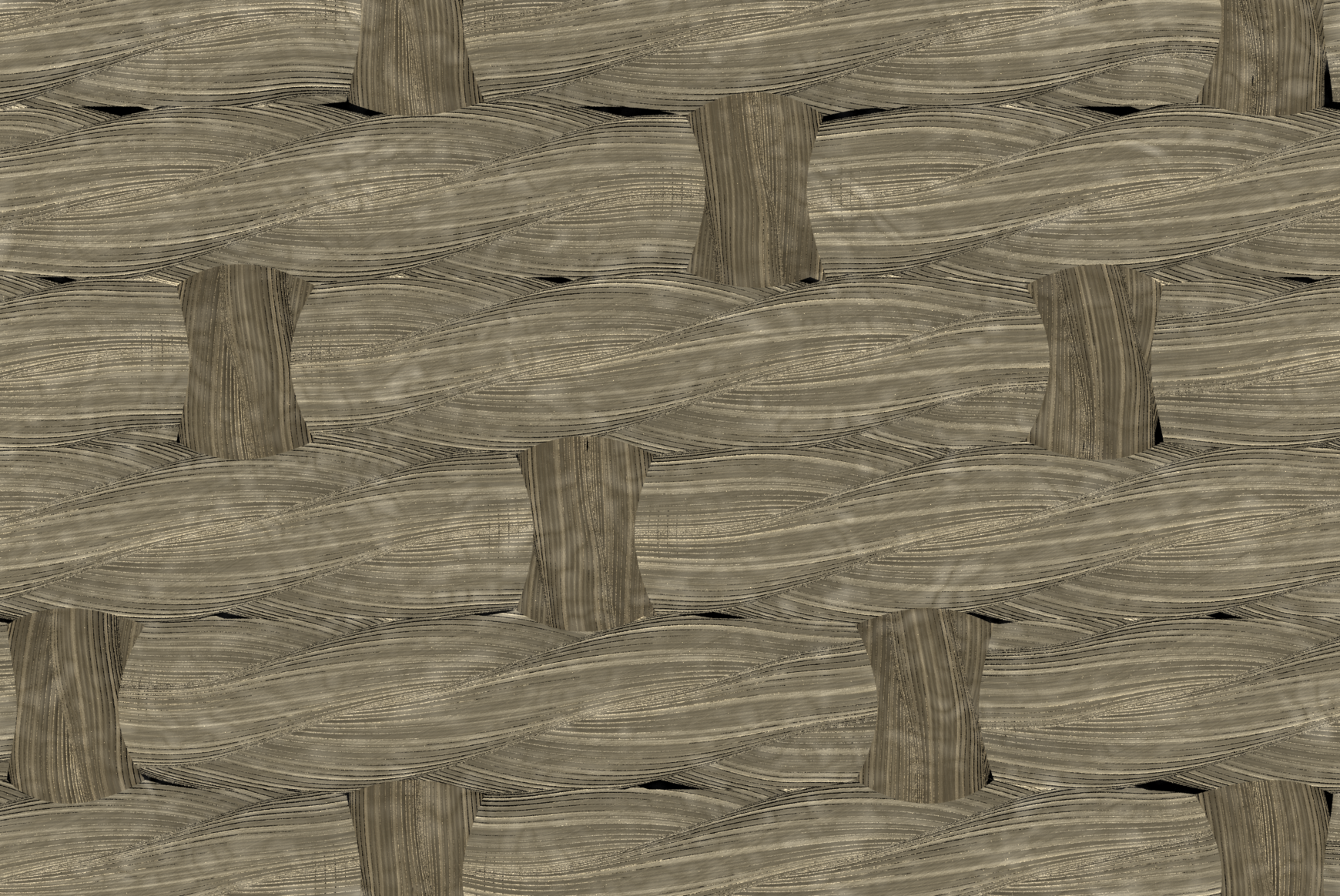

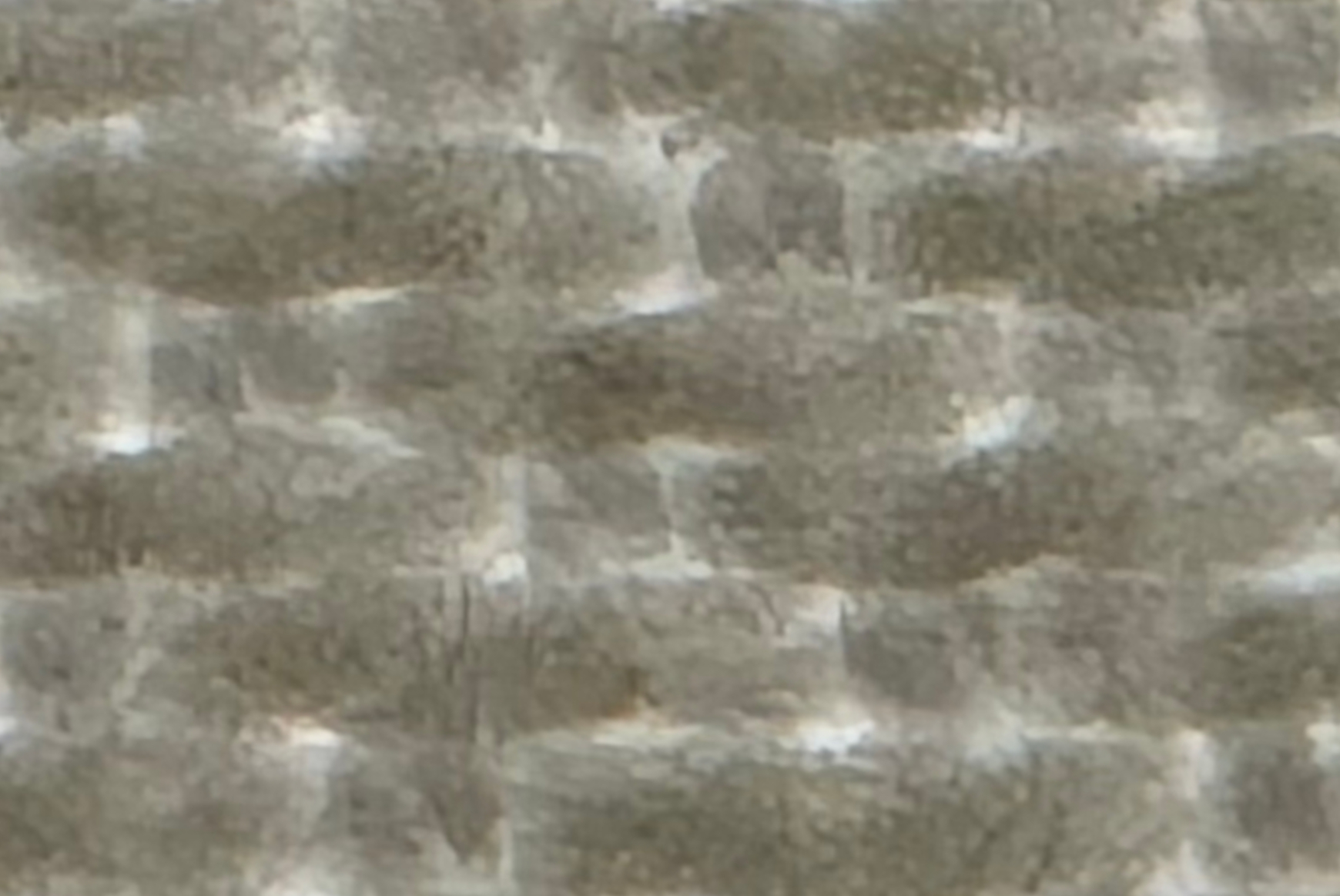

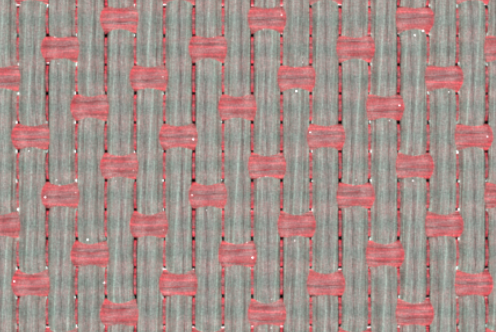

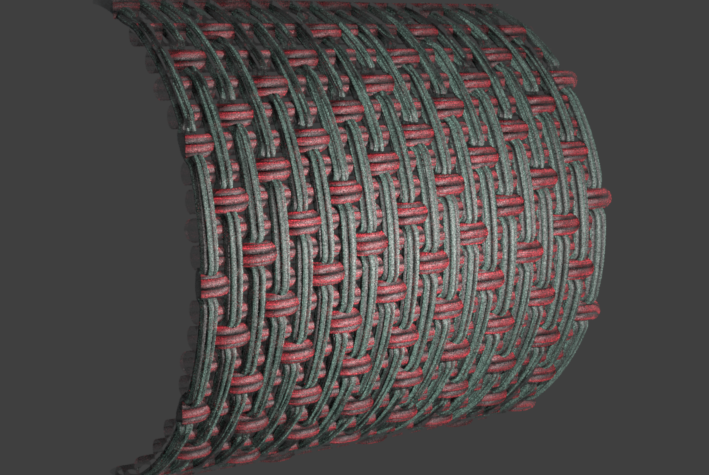

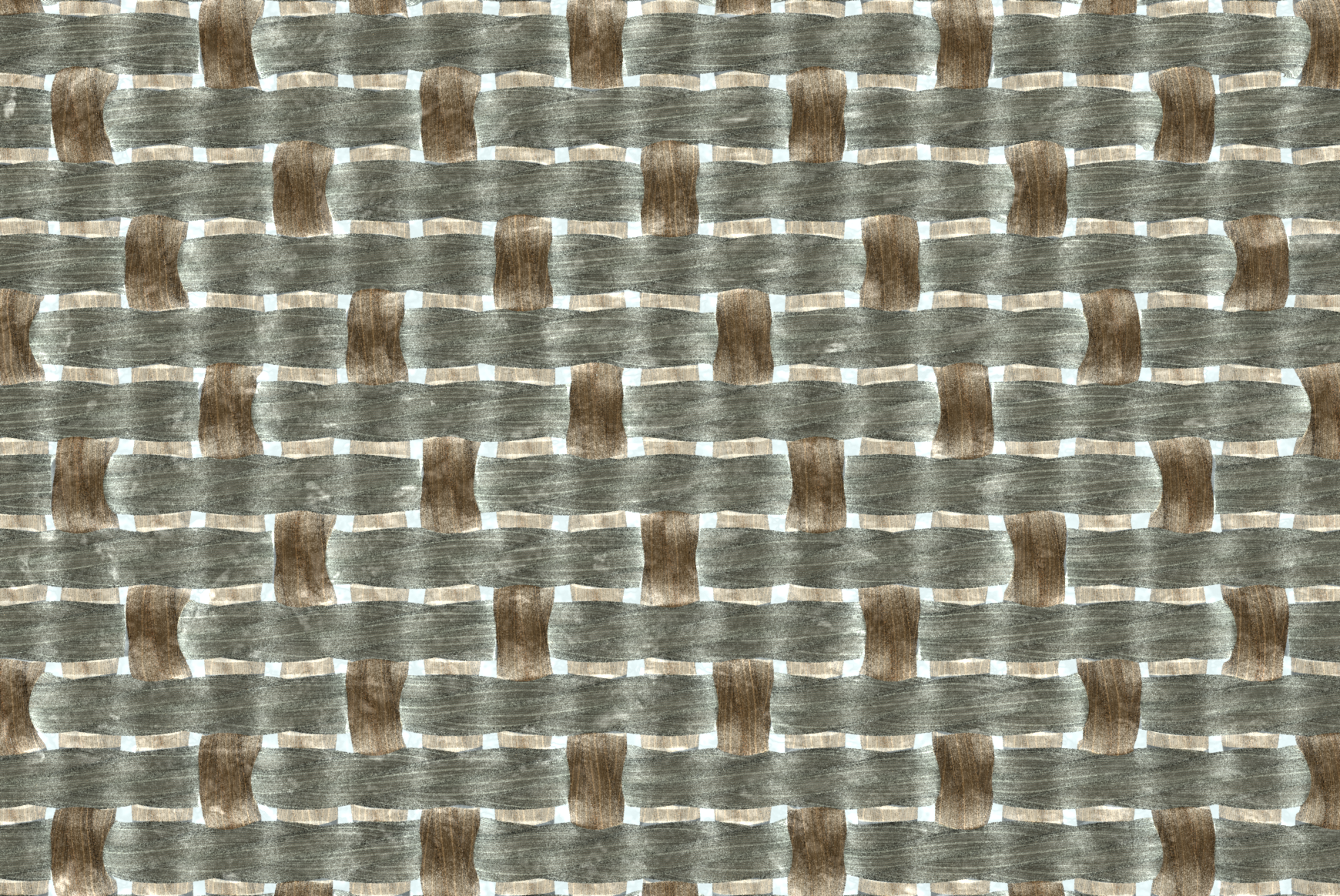

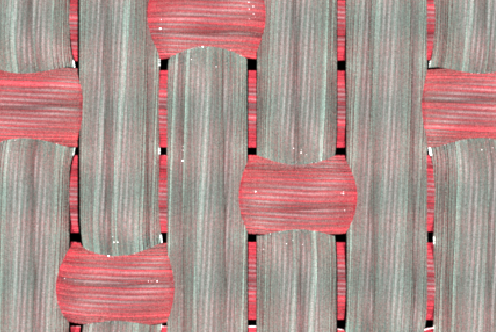

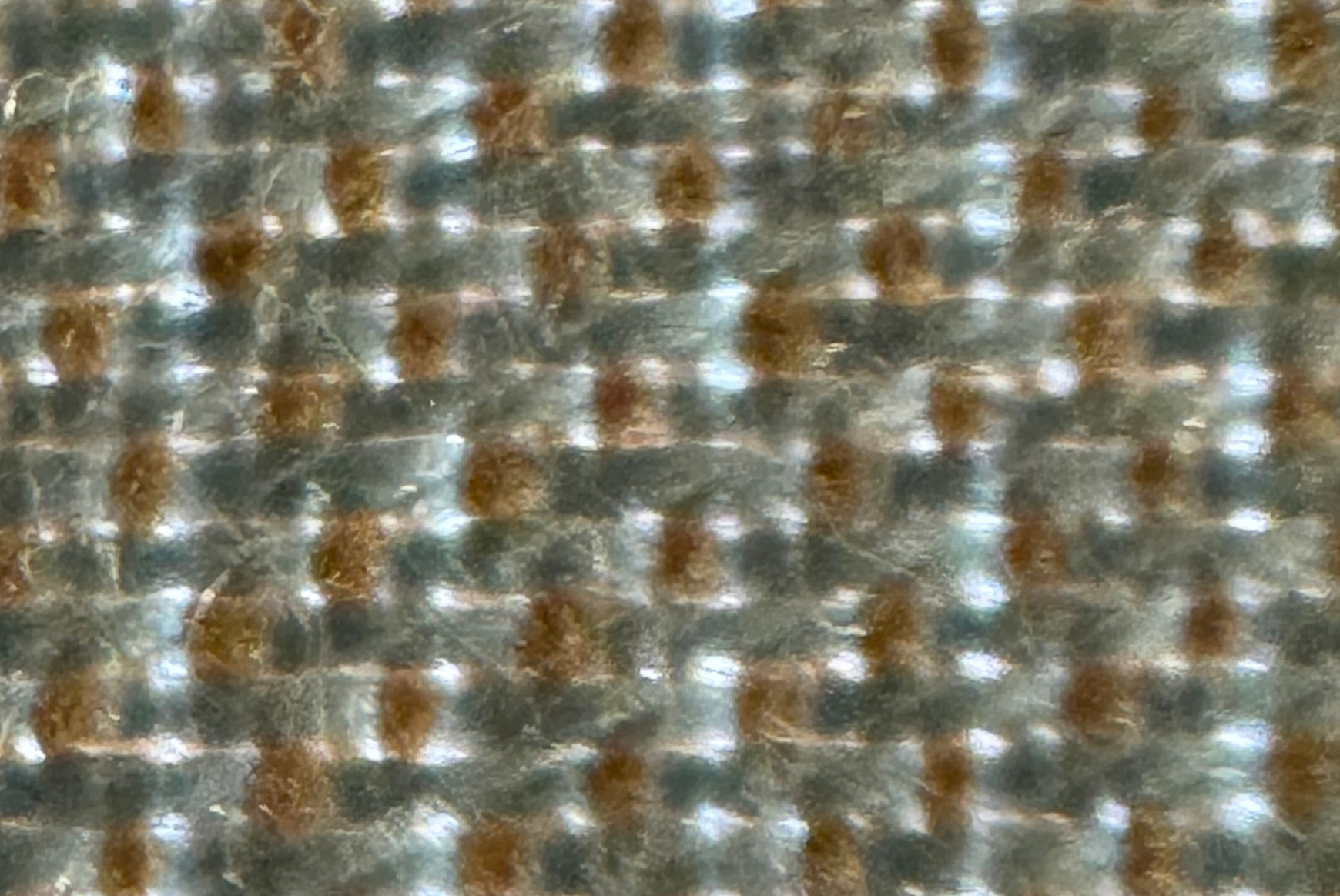

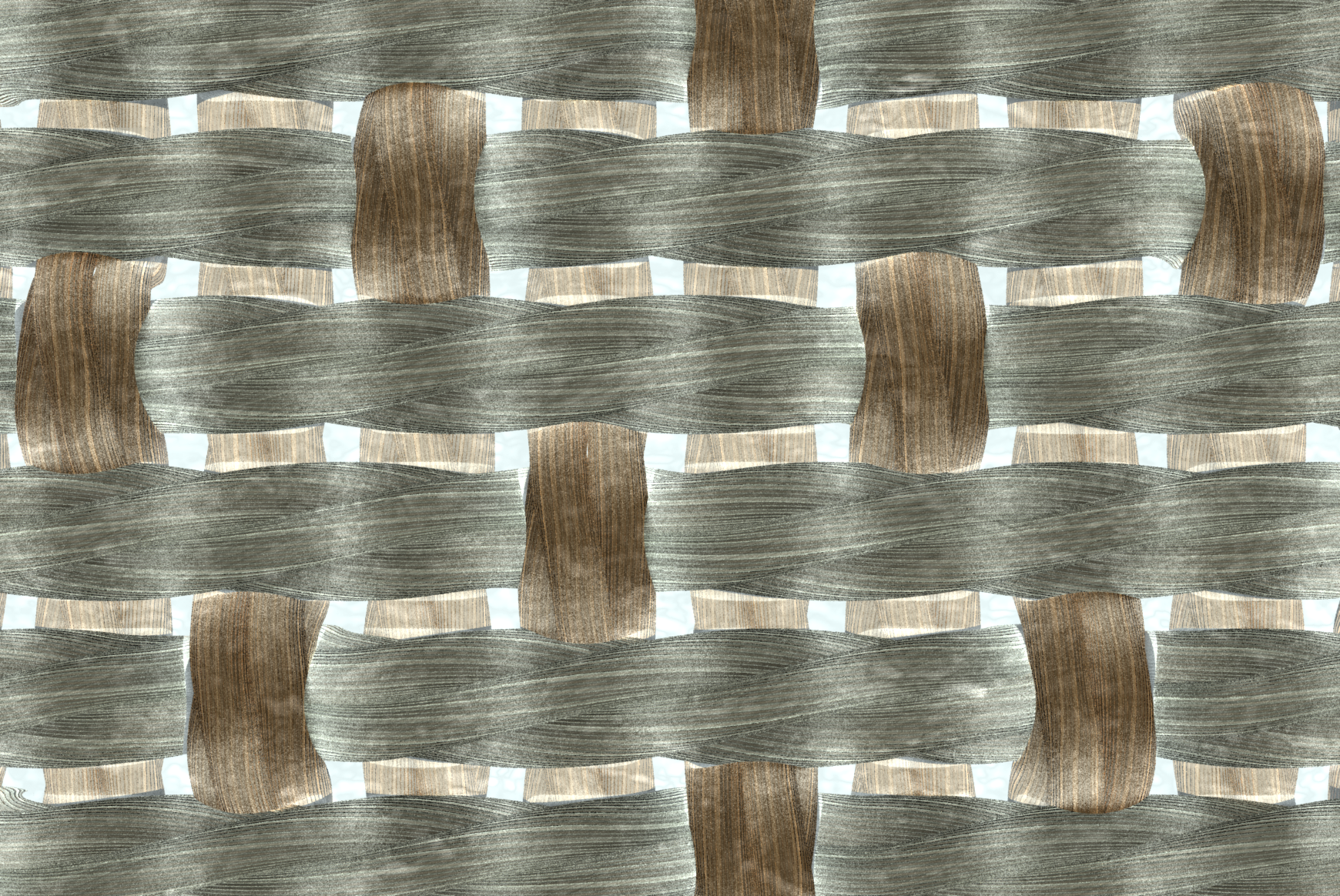

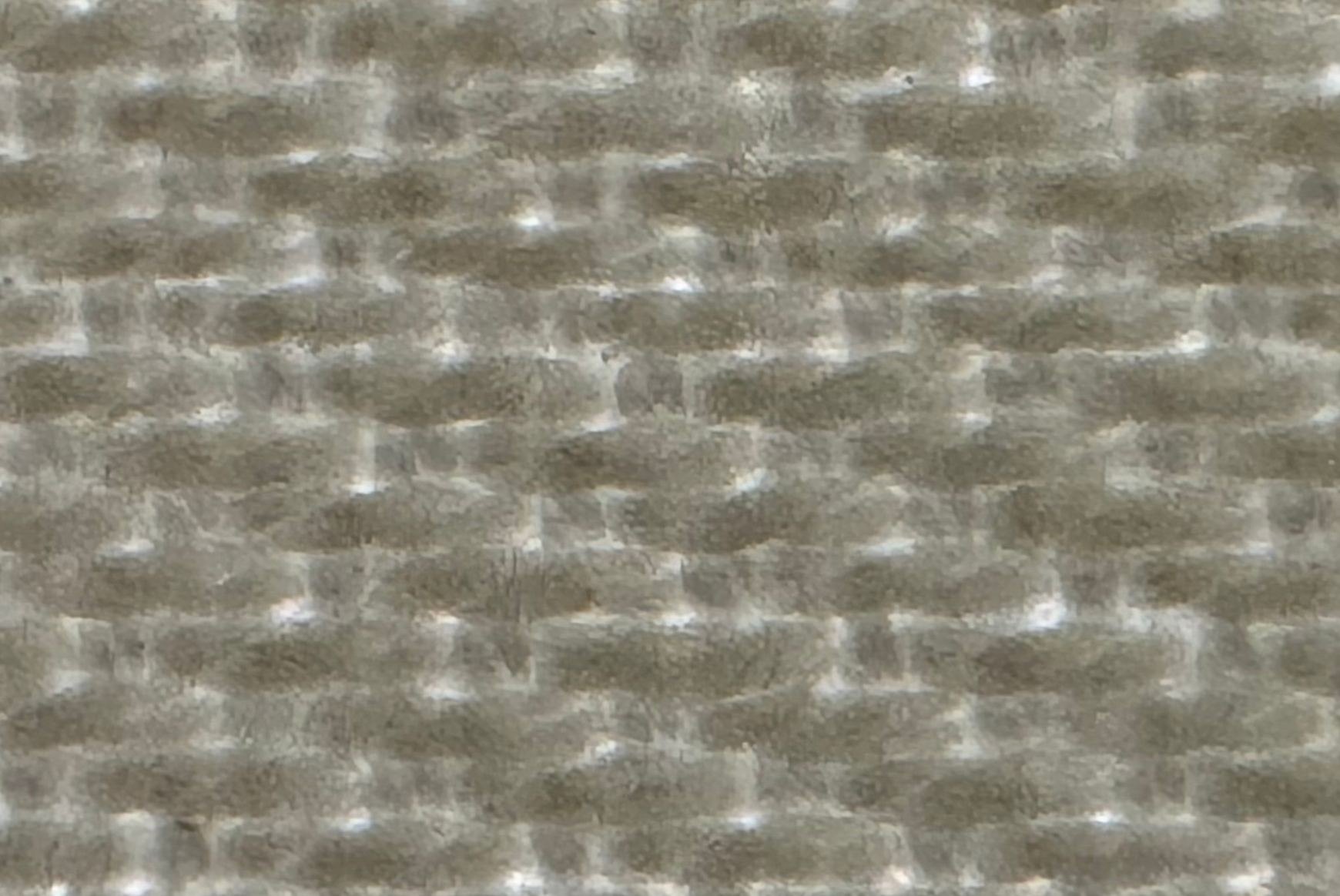

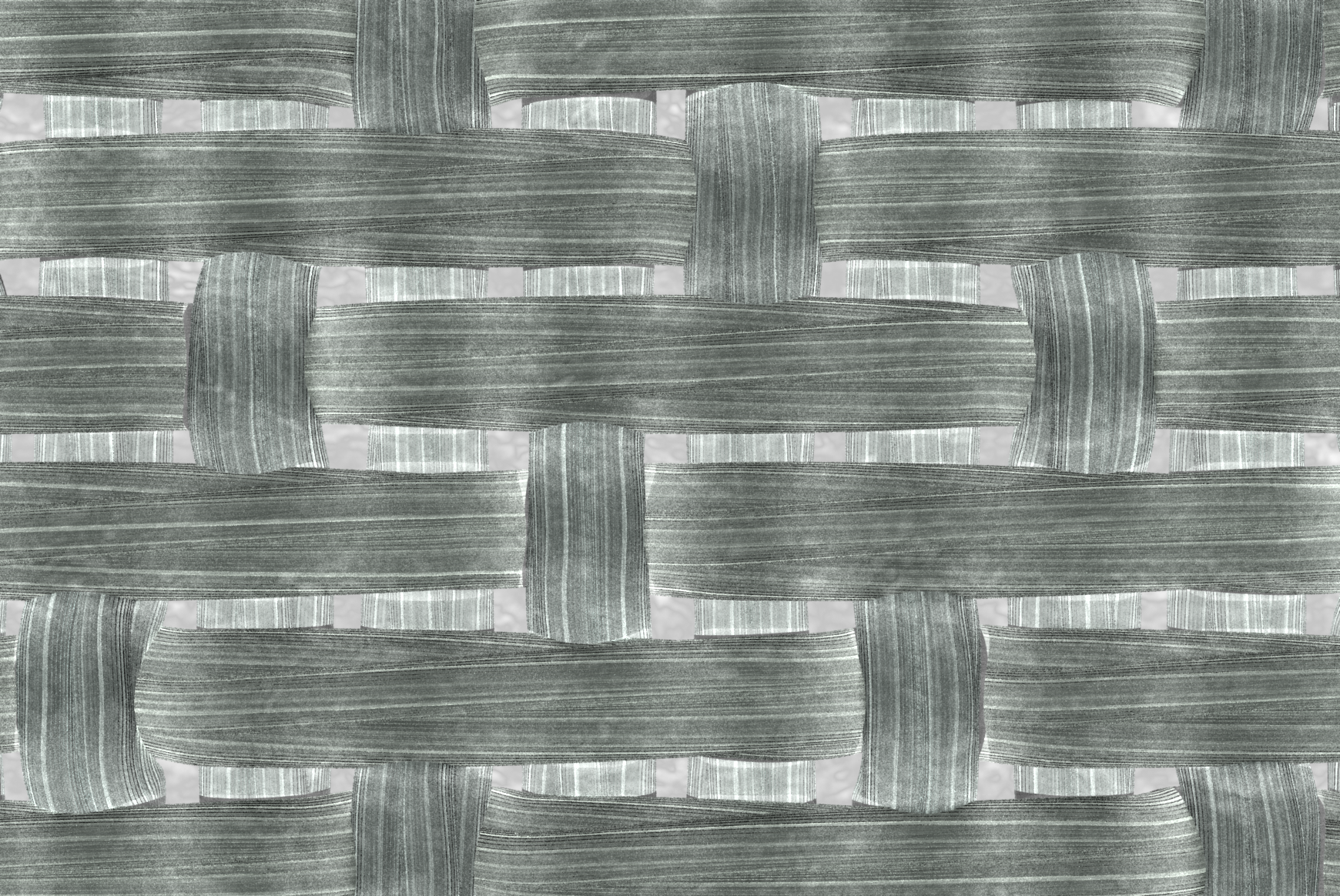

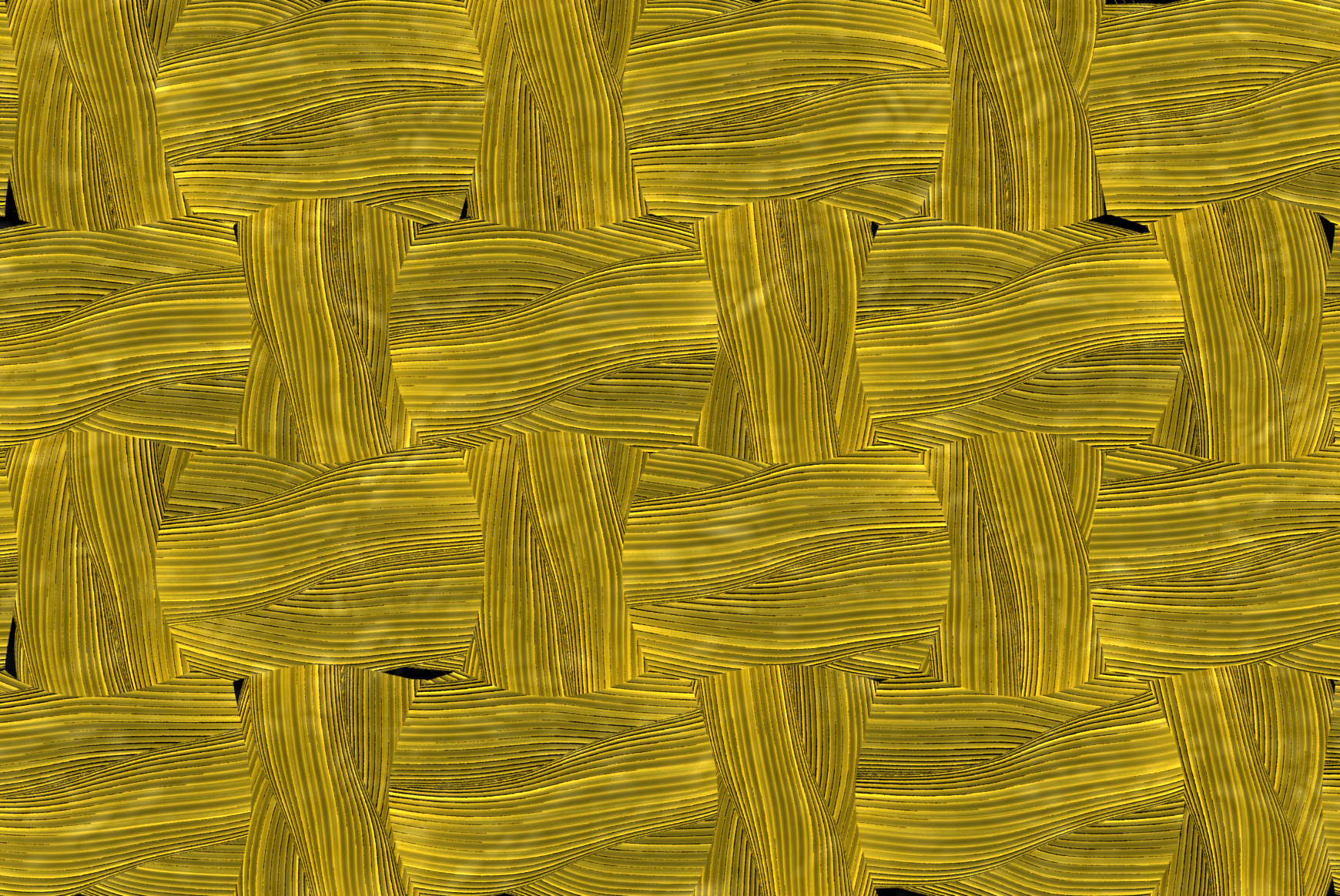

Reference Ours Reference zoom-in Ours zoom-in Generated yarns

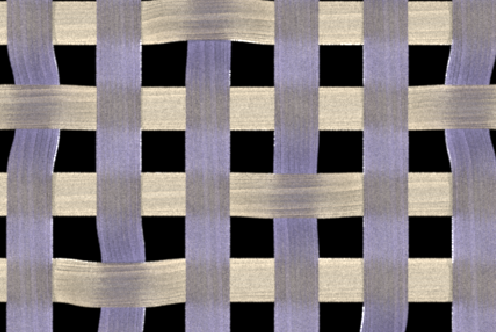

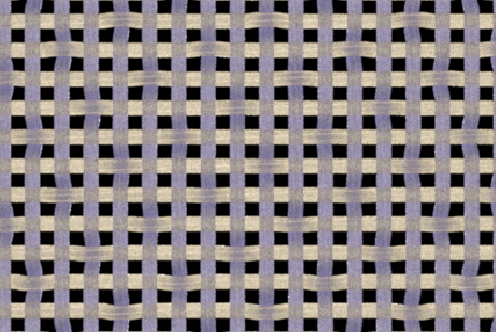

(a) Synthetic data
alt-text alt-text alt-text alt-text alt-text
alt-text alt-text alt-text alt-text alt-text

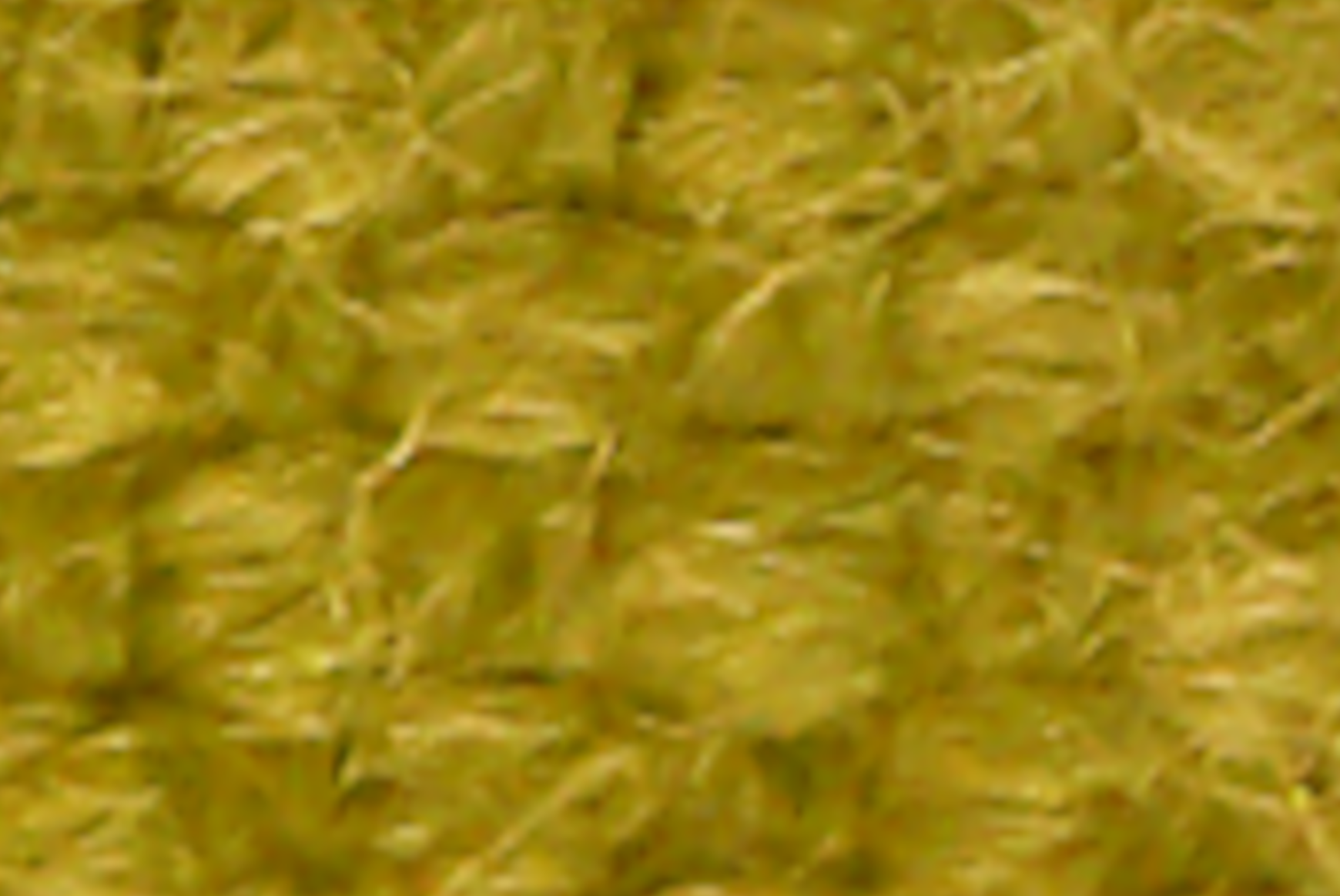

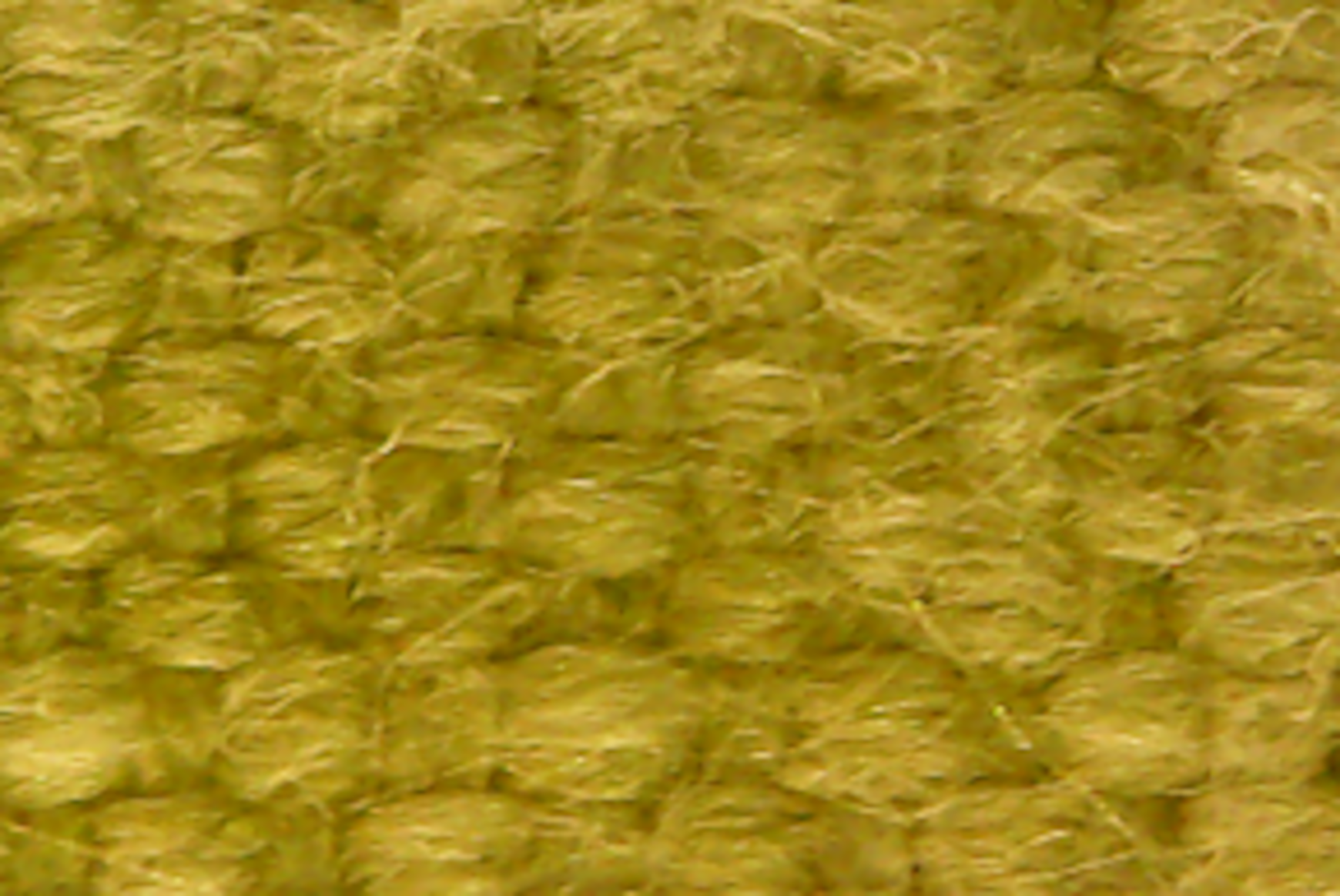

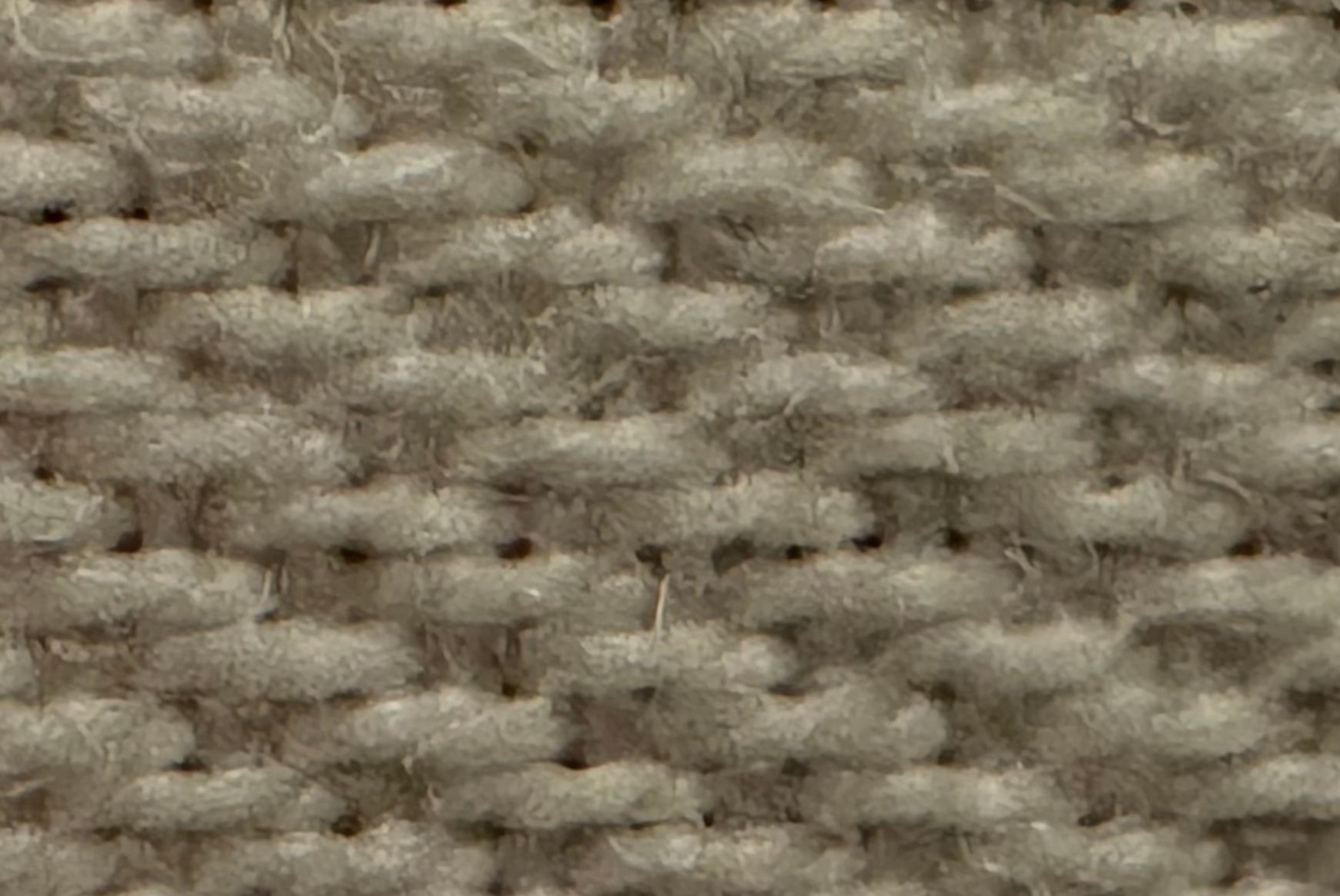

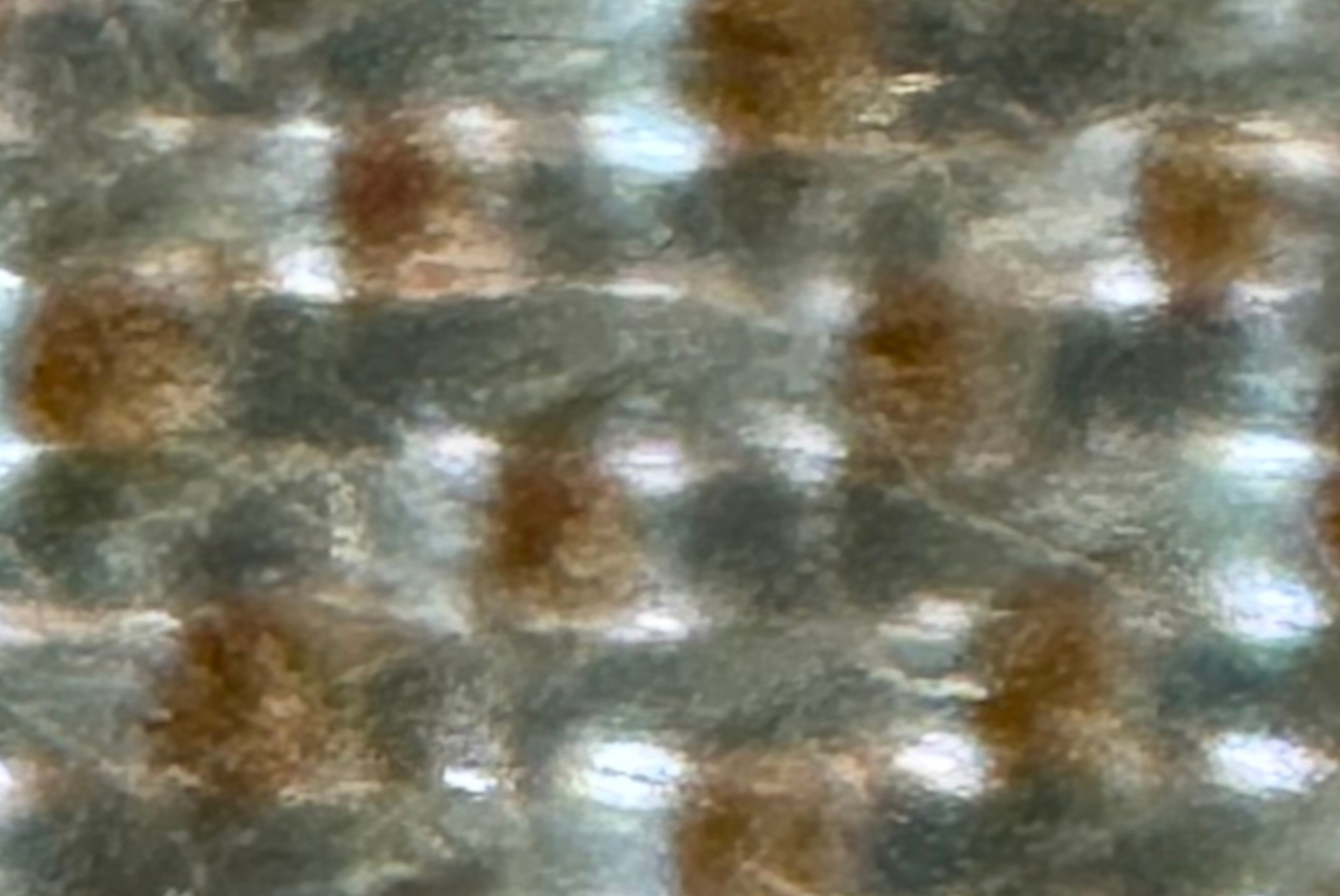

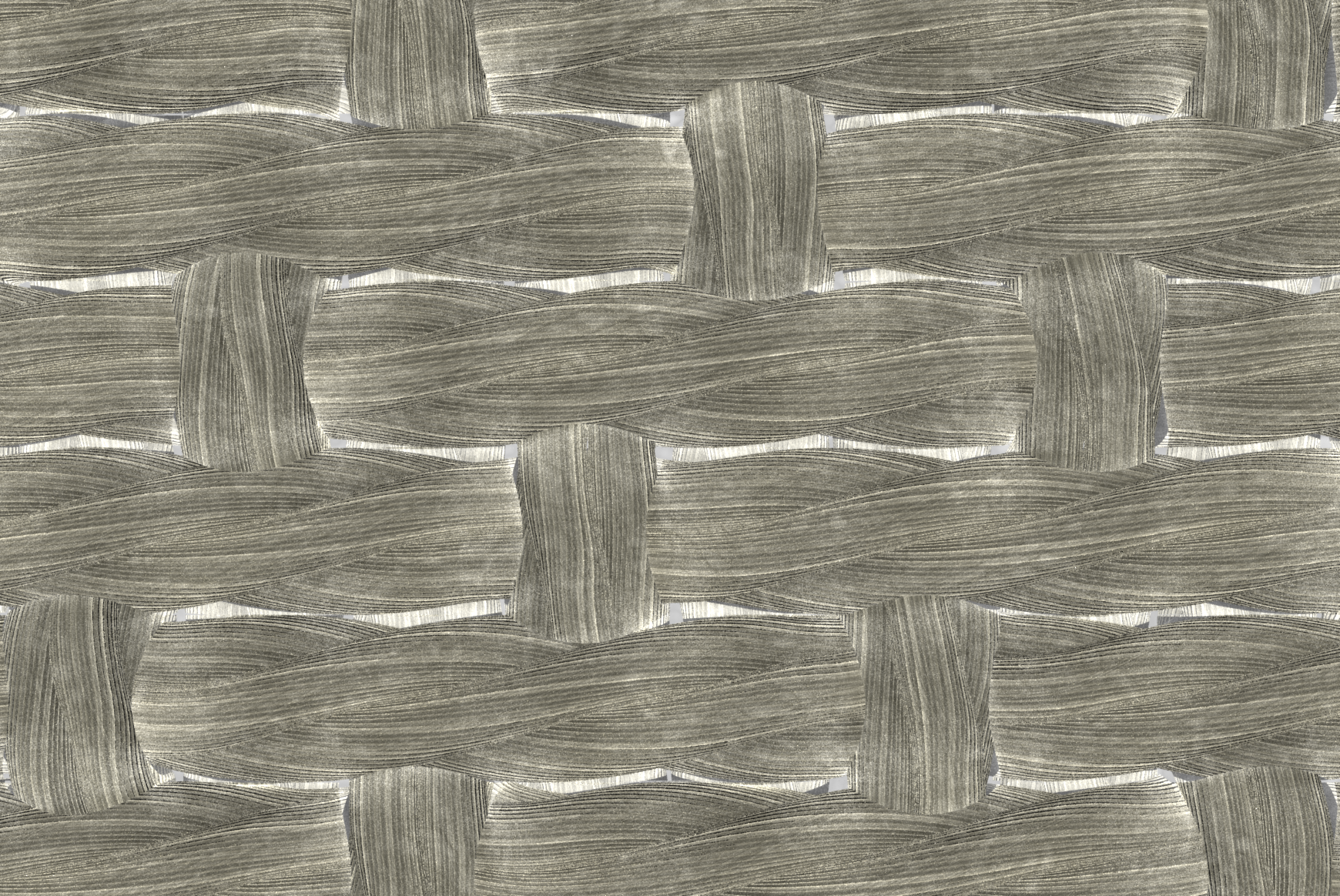

(b) Captured real data
alt-text alt-text alt-text alt-text alt-text
alt-text alt-text alt-text alt-text alt-text

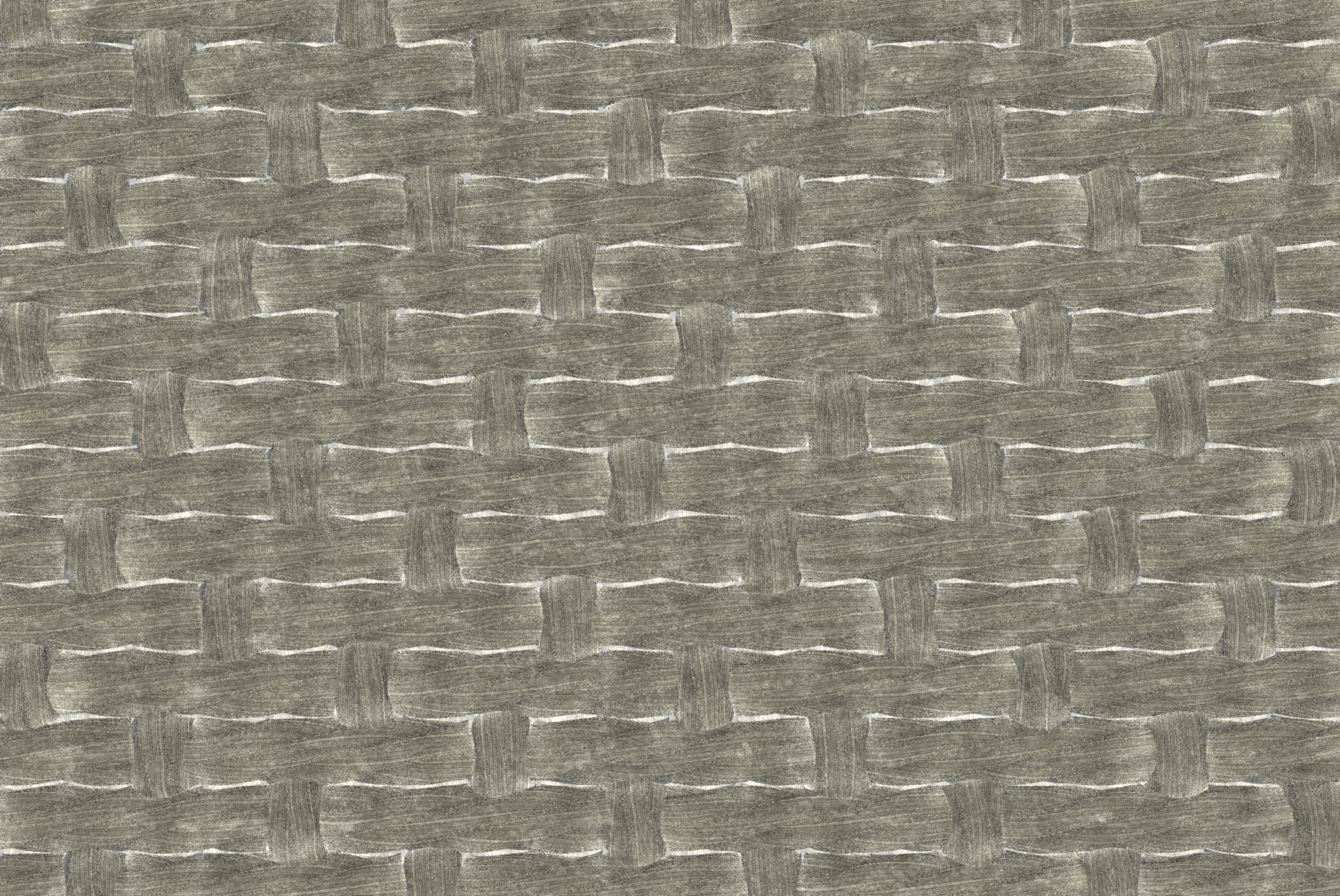

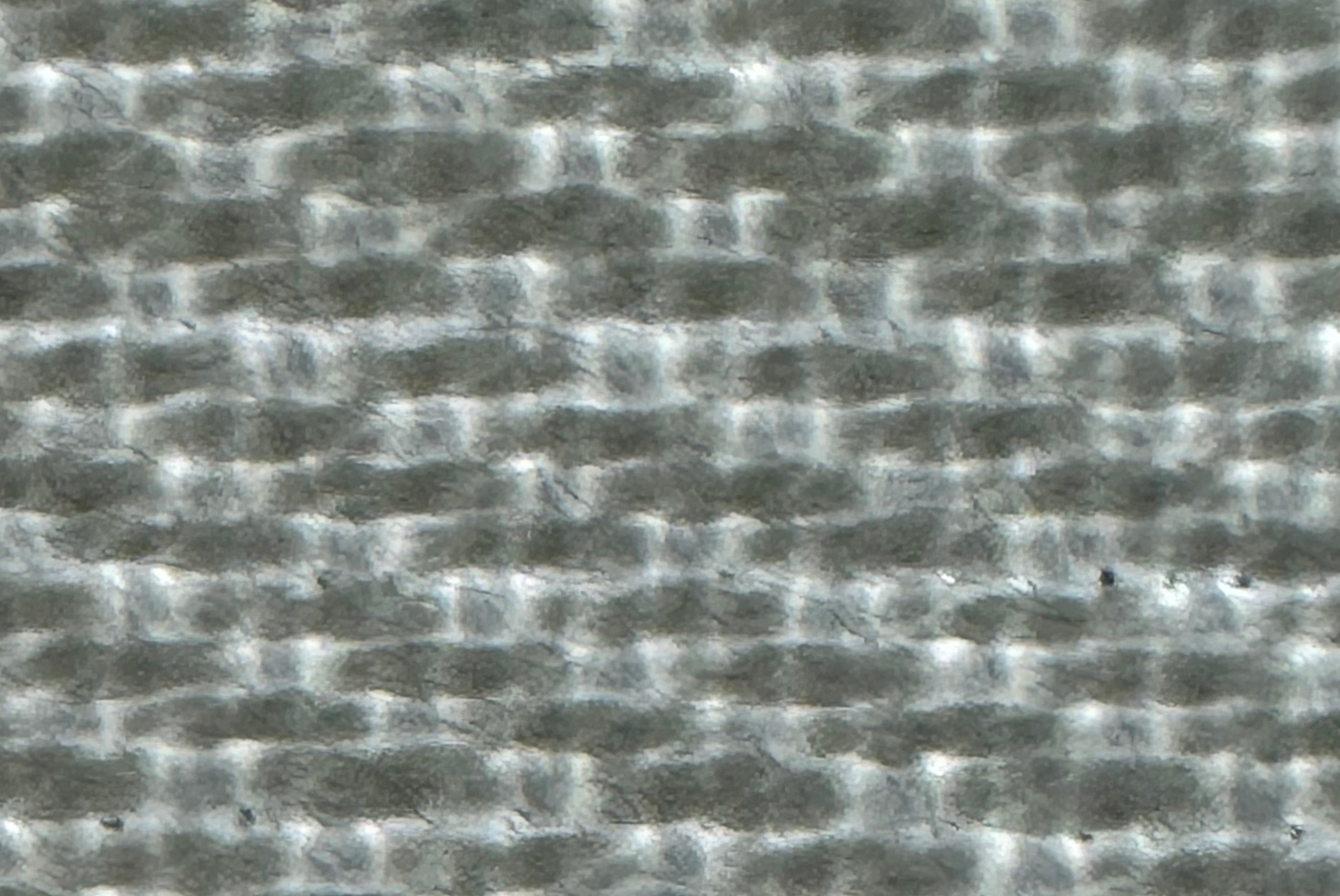

(c) Public real data
alt-text alt-text alt-text alt-text alt-text
alt-text alt-text alt-text alt-text alt-text

3. Spatially varing texture

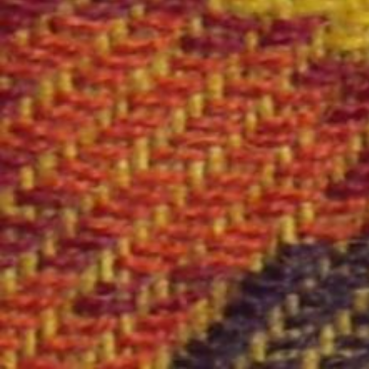

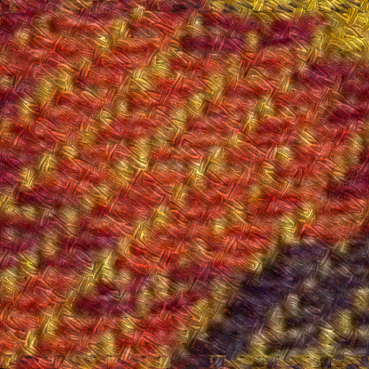

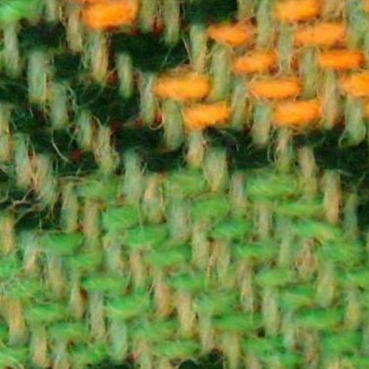

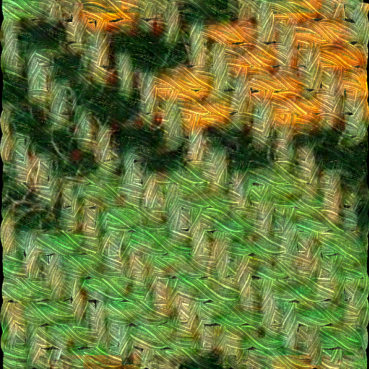

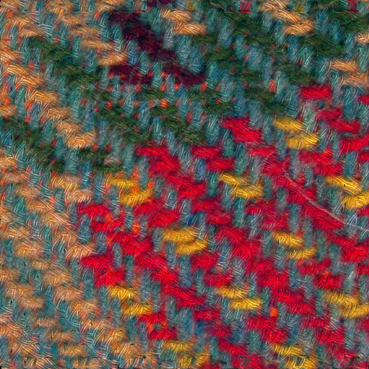

Our method can also support recovering spatially varying texture, such as the painted woven fabrics.

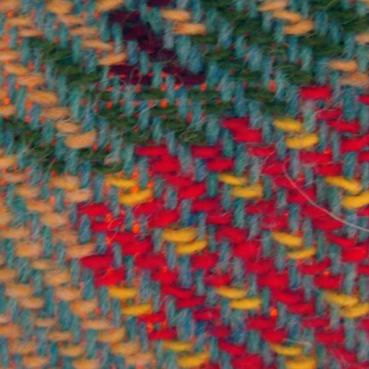

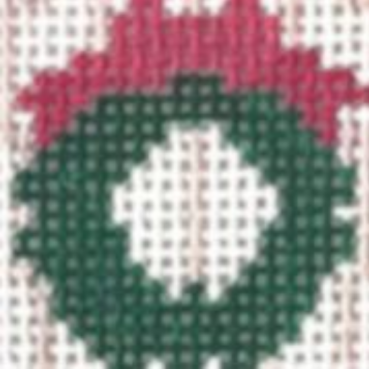

Reference

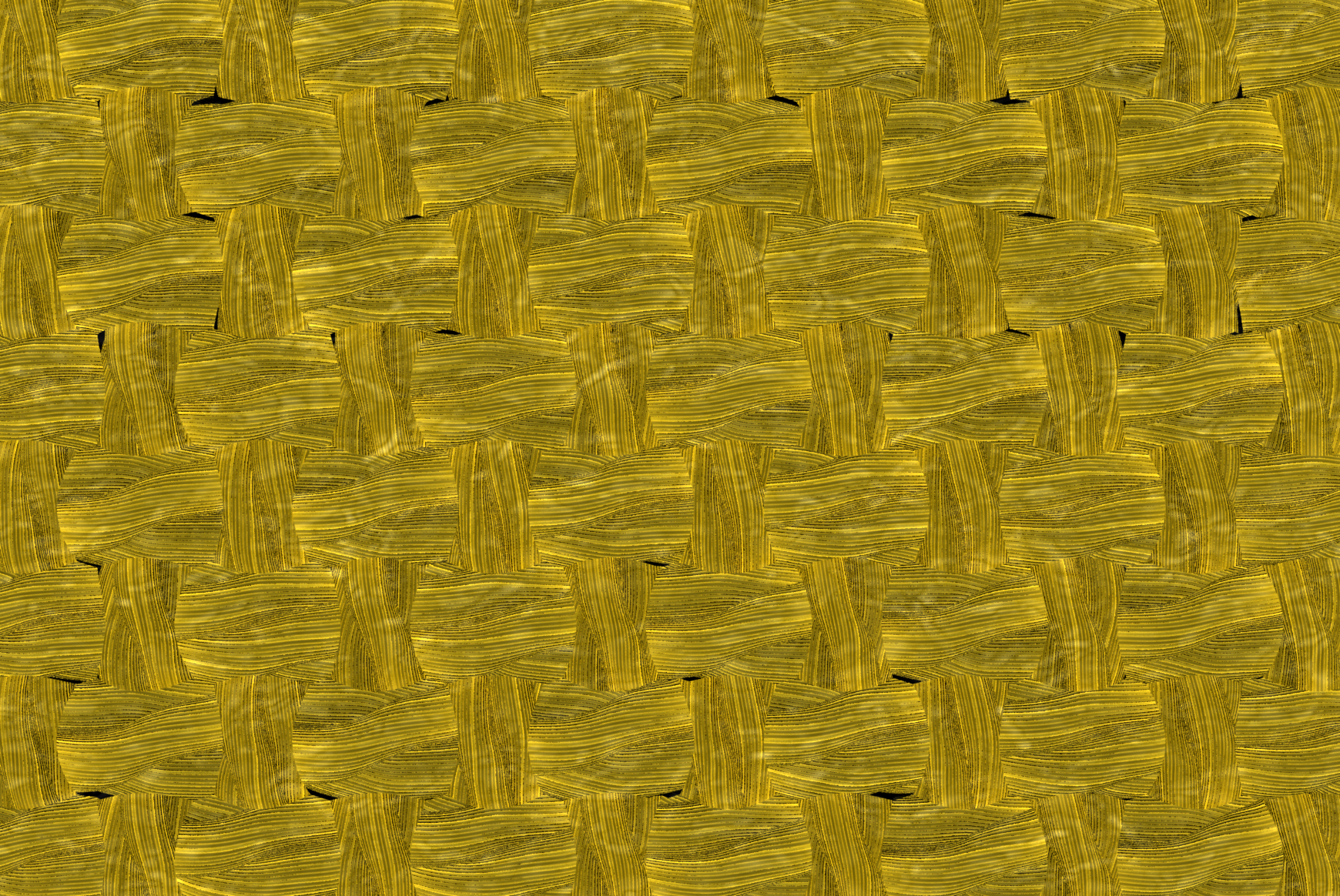

Ours

4. Customied Pattern

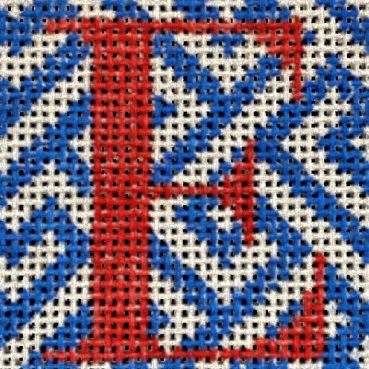

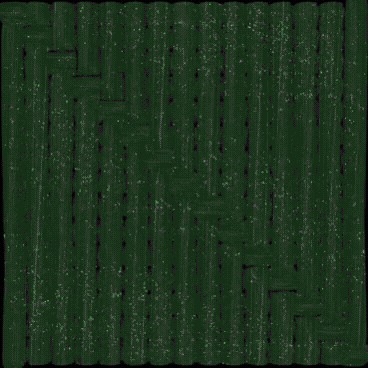

Our method can also match non-woven fabric images, such as logos and custom patterns.

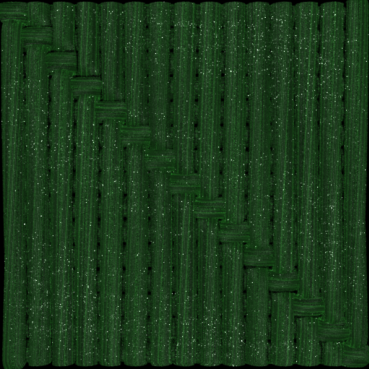

Init Process Reference

Video
